DIY LED Digital Music Spectrum Display Kit SCM LED Module Kit Sets Electronics Diy Speaker LED Module Kit

Sale Price: $$17.65
Old Price: $$19.61
Product Description
Evaluate Score: 5.0
Package Type: piece
Lot Number: 1

Trying to loading…

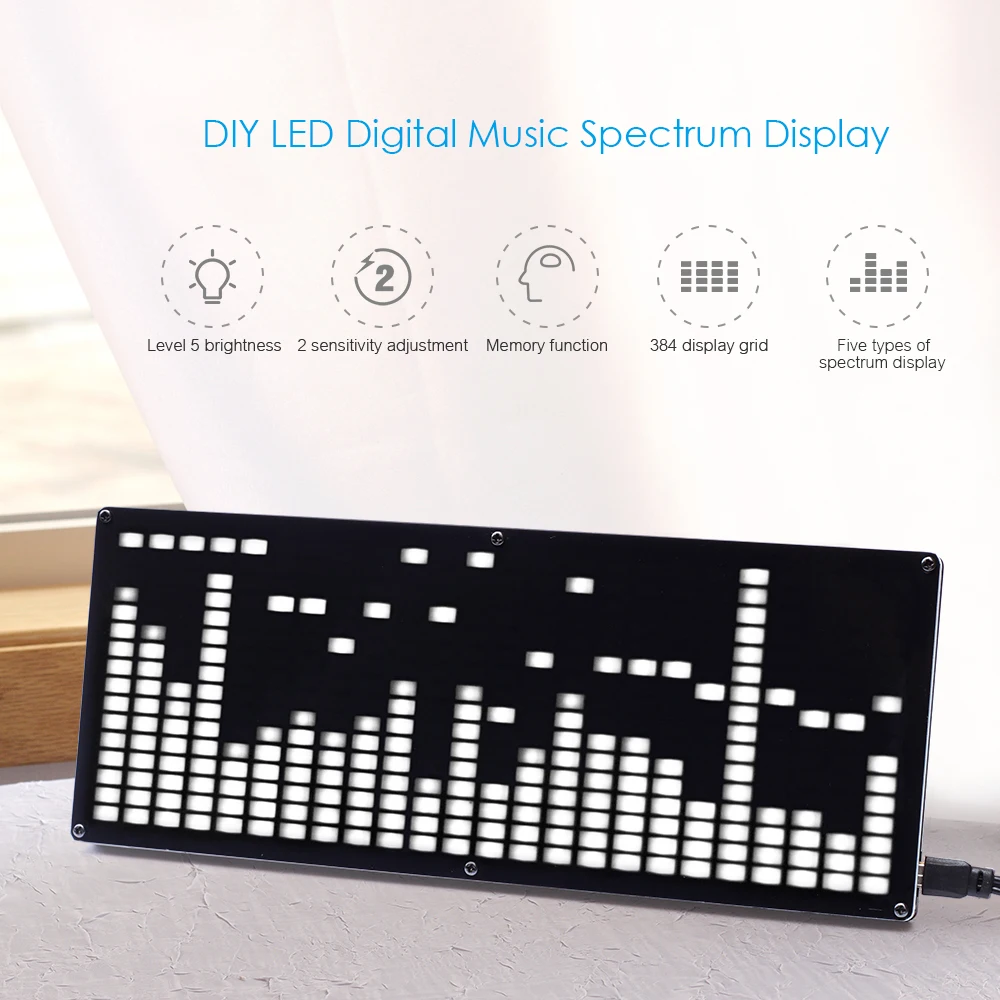

This LED music spectrum is an LED lamp that can change with the rhythm of music.
This is a large size LED music spectrum DIY kit with all black shell & soft light display. A total of 384 LED in 16 rows and 24 columns. Because there are too much LED, manual welding takes a lot of time, and the MCU pin is very dense(LQFP48), so the LED and MCU have been welded and tested, you only need to weld other components. The shell is fixed with screws for easy disassembly.

Features:
Black acrylic shell, soft light display surface, a total of 384 display grid, the perfect combination of LED and soft light cover.
Special audio frequency spectrum display drive chip, built-in a variety of DSP decoding algorithms.
Clock display (no power off protection function, clock will restart after power off).
Five types of spectrum display: general, buoy, note, block and column.
Single channel (24*16), double channel (left 12*16, right 12*16) dot matrix LED display.
Gain control function: you can set by yourself based on the strength of the sound signal.
Level 5 brightness adjustment function & 2 sensitivity adjustment.
Memory function, can keep the modes setting by the user forever.
All using DIP components to solder, easy to make and suitable for beginners.

NOTE: You will get a DIY kit, all components need to be soldered by yourself.

Specifications:
Material: Acrylic + PCB + Electronic Components
LED Color Display: White / Blue / Red / Green (Optional)
Power Supply: 5V USB
Audio Signal Input: 3.5mm Audio Input and Output Interface
Power Supply Terminal: Micro USB, 2 in 1 Mini USB 5P Audio and Power Supply
Static Working Current: <25mA
Working Current (with spectrum display): <150mA
Item Size: 227 * 91 * 35mm / 8.9 * 3.6 * 1.4in
Spectrum Display Modes: 5 Kinds(Normal, Buoy, Note, Block, Columnar Type)
Brightness Adjustment: 5 Levels
Sensitivity Adjustment: 2 Levels(High, Low)
Item Weight: Approx. 198g / 7.0oz
Package Weight: Approx. 234g / 8.2oz
Package Size: 23 * 9.5 * 3cm

Package List:
1 * LED Music Spectrum Display DIY Kit
1 * 2 in 1 USB & Audio Cable
1 * User Manual
